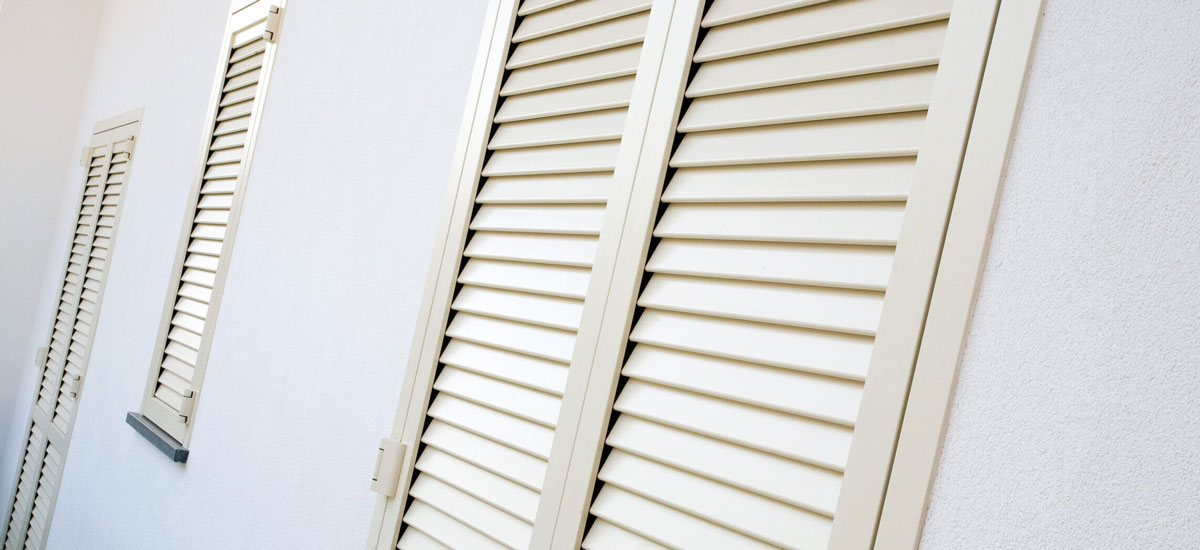

EVA

Modern security shutters built to last, no maintenance required

Eva is GINKO’s collection of modern security shutters, combining minimalist design and high-level anti-burglary protection in a system engineered for durability and requiring zero maintenance over time.

Essential design, absolute protection

These security shutters are made entirely of extruded aluminum and reinforced with internal stainless steel armor, delivering superior protection against intrusion attempts. Advanced security accessories further enhance their ability to resist forced entry, making Eva a reliable component in any passive security system.

ASK FOR MORE INFORMATION

Extraordinary security even on large openings

Eva shutters secure your space and offer excellent blackout capabilities, increasing indoor comfort while standing up to the harshest weather conditions without re-painting, repairs or special treatments. Whether you’re securing a private residence or a professional space, their security frames and sleek design elevate both form and function.

Available in all RAL, matte RAL, gothic, antiqued and wood-effect finishes, Eva security shutters come in four burglary-resistance levels to suit your specific needs: SuperBlindo, Blindo, Strong and Light.

Eva security shutters: available versions

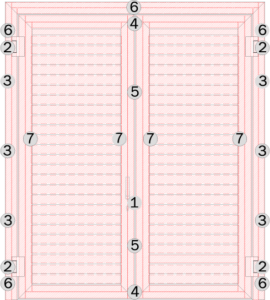

Superblindo RC4+

Class RC4 burglar-proof certification (2 doors) – UNI ENV 1627/30:2011 standard

Armouring thickness 4 mm in AISI 430 stainless steel on door and frame
Armouring thickness 4 mm in tropicalised steel on slats
Unified key espagnolette bolt with a controlled breakage system
Burglar-proof hinges in solid extruded aluminium with non-slip stainless steel pins
Patented hinge-side security devices
Tips guide and lower and upper tips in stainless steel diameter 10mm
Third anti-burglary locks in microfused stainless steel
Stainless steel perimeter anchoring pins diameter 12mm
3mm stainless steel rod with slat extraction

Download the full technical data sheet here

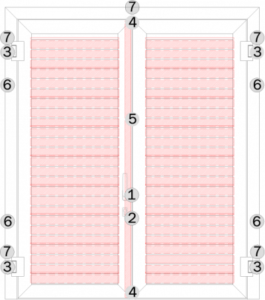

Blindo RC4

Class RC4 burglar-proof certification (2 doors) – UNI ENV 1627/30:2011 standard

Armouring thickness 4mm in AISI 430 stainless steel (central node)
Armouring thickness 4 mm in tropicalised steel on slats
Blind/perforated junction profile every 3 slats
Handle with a lock plus a controlled breakage system
1/2 Safety cylinder
Burglar-proof hinges in solid extruded aluminium with non-slip stainless steel pins
Tips guide and lower and upper tips in stainless steel diameter 10mm
Third anti-burglary locks in microfused stainless steel
Patented tear-proof bolts in full extruded aluminium
Stainless steel perimeter anchoring pins diameter 12mm
Double end-stop seal in EPDM

Download the full technical data sheet here

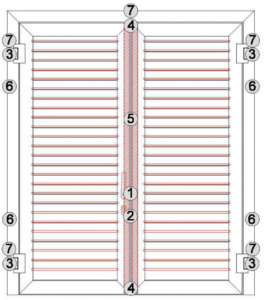

Strong RC3

Class RC3 burglar-proof certification (2 doors) – UNI ENV 1627/30:2011 standard

Armouring thickness 4mm in AISI 430 stainless steel (lock knot)
Cleco/perforated junction profile on each slat
Handle with a lock plus a controlled breakage system
1/2 Safety cylinder
Anti-burglary hinge in full extruded aluminium with non-slip stainless steel cloths
Tip guide 11 lower tips 11 upper diameters of 10mm in stainless steel
Third anti-burglary locks in microfused stainless steel
Patented tear-proof bolts in full extruded aluminium
Stainless steel perimeter anchoring pins diameter 12mm
Double end-stop seal in EPDM
Modern security shutters

Download the full technical data sheet here

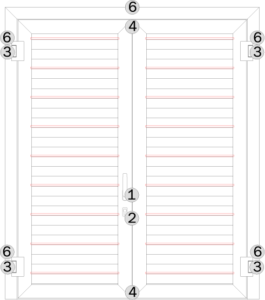

Light RC2

Class RC2 burglar-proof certification (2 doors) – UNI ENV 1627/30:2011 standard.

Blind/perforated junction profile every 3 slats
Handle with a lock plus a controlled breakage system
1/2 Safety cylinder
Burglar-proof hinges in solid extruded aluminium with non-slip stainless steel pins
Tips guide and lower and upper tips in stainless steel diameter 10mm
Third anti-burglary locks in microfused stainless steel (only on French windows)
Stainless steel perimeter anchoring pins diameter 12mm
Double end-stop seal in EPDM

Download the full technical data sheet here

ASK FOR MORE INFORMATION

Security shutters variants

Eva steel security shutters are available in standard types, with clear or curved lines, to adapt to the building’s style where they will be installed. As for the type of opening, it is possible to choose between hinged or folding opening, depending on the stylistic or your rooms’ space requirements.

The types of panels

Eva security shutters are made with different types of panels. The details are shown below:

Fixed slats: Eva security shutters are made with fixed open slats, partially or completely blind to ensure the maximum degree of safety.
Adjustable slats: on request, it is possible to make Eva with a mechanism with adjustable slats to regulate the passage of air and natural light. Maximum degree of security RC2.
Vertical slats: Eva is also available with vertical slats to guarantee total blackout.

Visualizza

The types of fixing

Eva security shutters are made with different types of fixings. The details are shown below:

Fixing with counterframe: counterframe in 20/10 galvanised steel specially designed for this product and designed to accommodate the perimeter fixings. It is ideal for new buildings and, depending on the size of the subframe, allows you to partially or almost totally hide the fixed perimeter frame.
Fixing with plate and folder: system designed by GINKO ideal for renovations without having to use masonry works. The anchoring plate is designed for fixing with special plugs in the centre of the wall and for inserting the perimeter anchoring the shutter’s pins. Once the installation is complete, the system will be covered by a special folder or sheets with the same finish as the shutter.

Visualizza

The finishes

The Eva series of modern security shutters are extremely versatile in terms of colour and finishes: explore the section to identify standard finishes and those with wood or RAL effect. Also, remember that GINKO can develop RAL lacquered finishes on request.

Standard

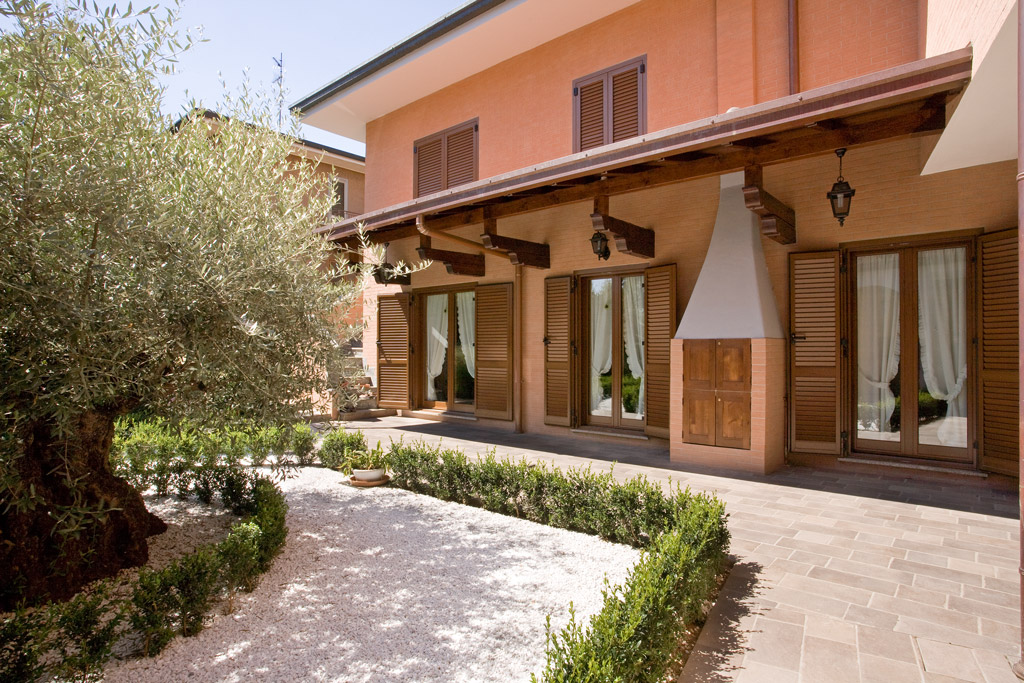

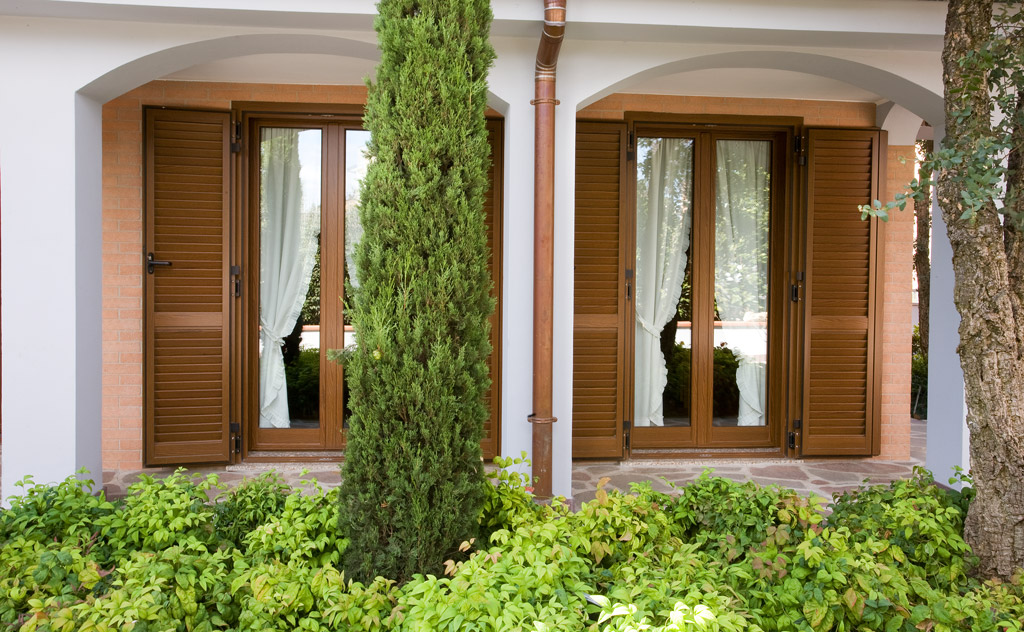

Wood Effect

RAL
